Wyo C++ Ch. 9 Notes

Wyo C++ - Ch. 9 Notes

Objective #1: Learn how to build structured programs that are divided into functions.

Every C++ program must have a main function. However, it is wise to develop an algorithm for any given project that divides large tasks into smaller ones. Each of the smaller tasks (let's say, subtasks) can be coded as C++ functions that go together with the main function to make up a structured program.
Using functions makes it easier to code programs.
Using functions also makes it easier to debug large programs.
Using functions makes it easier to maintain and upgrade a program after the first version has been finished.
Keep the following guidelines in mind when building programs with multiple functions:
- organization - programs with functions are easier to read and modify
- autonomy - functions should not depend on data or code outside of the function any more than necessary
- encapsulation - functions should keep all of their "details" to themselves
- reusability - since functions are meant to perform single and well-defined tasks, they may be reused in other programs or, even, by other programmers
Functions are given valid identifier names, just like variables. However, a function name must be followed by parentheses. C++ programmers generally add functions to the bottom of a C++ program, that is after the main function. While this is not a requirement of the compiler, it makes your code easier to read and follow by fellow programmers. If the functions are listed after the main function, then function prototypes must be included at the top of the program, above the main function. The function prototypes "warn" the compiler about the eventual use of the prototyped function and allocate memory. An error will definitely result if you call a function from within the main function that has not been prototyped.

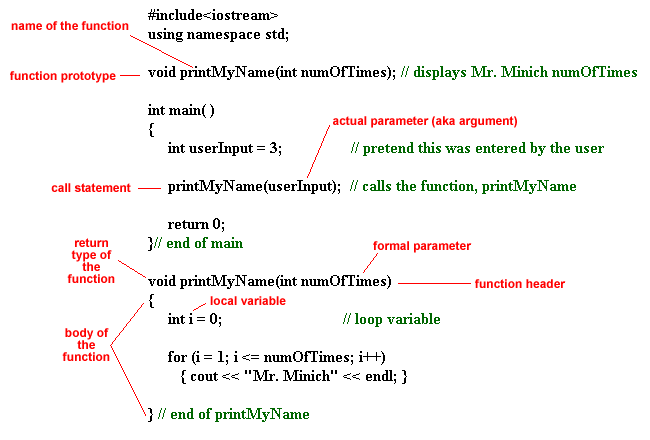

Example: The following program includes a function prototype which "declares" to the program the existence of the function printMyName which is detailed below the main function. The main function "calls" the printMyName and sends the argument userInput which has a value of 3. printMyName receives the value and stores it in the parameter numOfTimes. The function then prints out the string "Mr. Minich" 3 times using a for loop.

Objective #2: Understand what is meant by the phrase "scope of variables."

Variables are either global or local in nature. Global variables are ones that are declared outside and above the main function. They can be used in any function throughout the program. It is not wise to use global variables any more than you have to. One small error (for example, miscalculating a value) could lead to multiple, hard-to-find errors in large programs. Local variables are ones that are declared inside of a function, including main. They cannot be used or referred to in other functions.
In order to strengthen your program and functions' autonomy and encapsulation, you should avoid the use of global variables and try to use local variables instead.
The scope of a variable is the area in which it can be legally referenced. A global variable's scope is the whole program. A local variable's scope is the function in which it is declared.
In the example program above (with the function printMyName), the variable userInput is a local variable which belongs to the main function. The variable i is a local variable to the function printMyName. (numOfTimes isn't really a variable. It is a parameter technically. See objective 3 for more details on parameters.)

Objective #3: Understand how data is passed to functions.

Data is passed to functions as arguments (sometimes referred to as actual parameters). When a function is "called" by the main function (or another function), one or more arguments are passed to the function. On the receiving end, the function accepts these arguments (technically, as formal parameters). The variable names of the arguments (that is, actual parameters) from the "calling" function do not have to be the same as the names of the formal parameters in the "called" function. But, the datatypes of the arguments and the parameters should match exactly. An error could occur if the data types do not match.
We type "return 0;" as the last statement in the main functions of all the programs that we write in this C++course. This returns a message (of "0") to the operating system indicating that our C++ program ran successfully. A returned nonzero value is often used by programmers to indicate that an error occurred during the program's execution.

Often, though, you want your function to return a computed value to the calling function. This value is used in the exact statement that the function was called. For example,
fahrenheit = celsiusToFahrenheit(celsius);

sends the argument, celsius, to the function, celsiusToFahrenheit, where it is used to determine the equivalent Fahrenheit temperature. Then, the final value is returned from within the function to the main function where it is assigned to the fahrenheit variable.
There are technically three ways to pass data as arguments to functions. You can pass data by value, by reference, or by address.
- passing by value is the preferred method. You simply use a variable name, an actual numeric literal, or an expression in the parentheses of the call statement. (see p. 165) This method is the safest because it does not actually change the value of the argument in the calling function.

  In the example below, the argument named price is passed by value to the function addTax.

  #include <iostream.h>

  double addTax(double);

  int main()
  {
     double price = 10.00;
     double finalPrice = 0.0;

     finalPrice = addTax(price);

     cout << "The final price with tax is " << finalPrice << endl;
     return 0;
  }// end of main

  double addTax(double initialPrice)
  {
     return (initialPrice + initialPrice * 0.06);
  }// end of addTax
- passing by reference is to be used when you want the function to actually and permanently change the values of one or more variables. This method is dangerous but beneficial sometimes since it allows you to affect the values of arguments in your calling function. You would purposefully pass by reference if you want to return 2 or more values to the calling function. Since it is not possible in C++ to execute two return statements within a function and since it is not possible to return two values in the same return statement (i.e. return myResult, myOtherResult is illegal), passing by reference can allow you to modify two or more variables in the calling function (i.e. main). Also, if you need to pass a really large variable or object, it saves memory to pass by reference. Since a copy of the variable is not being made when you pass by reference, less memory overhead is required. For int, double, and char variables, passing by reference to save memory is not really necessary. However, if you were to pass a large "object" such as a piece of clipart or a whole file, you would intentionally pass by reference.

  You must use an ampersand (&) before the formal parameter names in the function header (the first line of the function definition) to denote passing by reference.

  In the example below, the argument named price is passed by reference to the function addTax.

  #include <iostream.h>

  void addTax(double &);

  int main()
  {
     double price = 10.00;

     addTax(price);
     cout << "The final price with tax is " << price << endl;
     return 0;
  }// end of main

  void addTax(double & incomingPrice)
  {
     incomingPrice = incomingPrice + incomingPrice * 0.06;
  }// end of addTax
- passing by address is technically what happens when you pass an array to a function. Since arrays are actually pointers to one memory address, you are not passing the actual array but just information that tells the function where the first element of the array is stored in the RAM of the computer. Making changes to the array within the function will affect the values within the array permanently, so this method should be used with care.

Objective #4: Learn how to use the library functions that are included with the compiler.

There are many functions available to C++ programmers which were written by other programmers. You can use the #include compiler directive at the top of your program to take advantage of these functions. The source code for those functions does not need to be included within your program. In fact, you do not even have to know exactly how they work. You do have to know how many arguments to send to the functions and what datatypes to use for those functions. However, some of the "older" header functions end with a ".h" extension. For example, there are many mathematical library functions that can be used in your program if you "include" the math.h (see pp. 171 & 172) header file at the top of your program. Similarly, the ctype.h header file may be useful as well (see p. 172).

Objective #5: List and explain the four basic types of statements. (This objective is not from our textbook.)

sequence
selection (if and switch structures)
iteration (for and while loops)
invocation (functions)
Sequence statements are simply statements that naturally follow one another from the top of the program to the bottom. For example, in the "hello world" program all of the statements are sequence statements.
Selection statements include if statements and switch statements. Selection statements are sometimes called conditional or decision statements. An example of a selection statement is "If I scored a 60 or higher, then I passed the course; otherwise, I failed." There are really two possible end results of this statement. Therefore, both paths are not followed. You cannot pass the course and fail the course at the same time. (We will study these kinds of statements in a later chapter.) In C++, this if statement might look like this:

if (score >= 60)
{
cout << "I passed" << endl;
}
else
{
cout << "I failed" << endl;
}

Iteration statements allow the compiler to return to a point higher in the program in order to continuously repeat one or more statements. All loops including while, do/while, and for loops are prime examples of iteration statements. In C++, this is an example of an interation statement (while loop) that prints "hello world" ten times:

while (num < 10)
{
cout << "hello world" << endl;
num = num + 1;
}

Invocation statements allow you to place a block of statements that you wish to use several times during a program in one section (usually at the bottom of your program). You then have the ability to "call" those statements whenever you wish to execute them without having to retype the block of statements over and over again within the program. In C++, we use "function calls" as invocation statements. For example, the statement

displayHelloWorld( );

will call (i.e. invoke) the function below

void displayHelloWorld()
{
cout << "hello world" << endl;
}
A good exercise would be to pretend that you are a robot and that each day you simply follow a set of instructions. Write out everything that you do as a simple instruction. Label each instruction as one of the 4 types of statements above.

Example:

Listen to alarm.
If I am really tired, hit the snooze button; otherwise, get out of bed.
Walk to bathroom.
If cap is on toothpaste, take it off.
Pick up toothbrush.
Squeeze toothpaste on toothbrush.
etc.
